Geon VENOM60 HE PCB

Geon VENOM60 HE PCB

Geon VENOM60 HE PCB specifications:

  • Hall-Effect PCB
  • Web-based firmware (https://venom.how/)
  • RISC-V32 architecture applied
  • Supports 8KHz polling rate / 14KHz scan rate per key
  • 0.16ms latency
  • Custom PCB standard specifications
  • 1.6mm Thickness
  • FR4Ā Material

Layout:

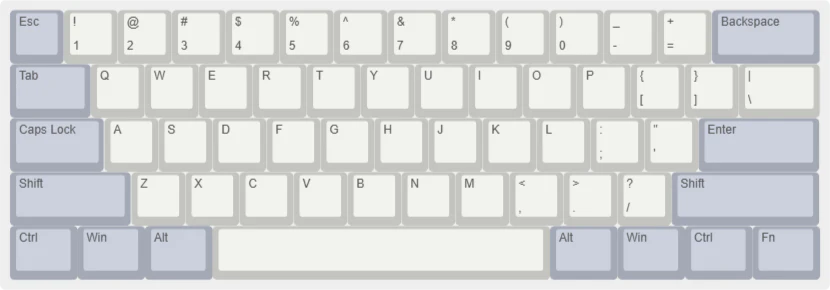

7U PCB Layout

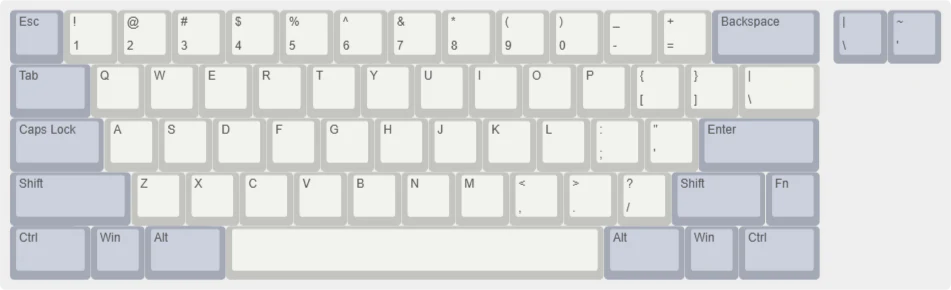

6.25U PCB Layout

Compatible Switches:Ā

- Geon RaptorĀ HE
- Geon RAW HE
- GATERON KS-20 / KS-20T, etc.
- N-pole switch, 1600gs or less at bottom magnetic force

Select Layout
From $102.17
Geon VENOM60 HE PCBā€”
$102.17

Product Information

Shipping & Returns

Description

Geon VENOM60 HE PCB specifications:

  • Hall-Effect PCB
  • Web-based firmware (https://venom.how/)
  • RISC-V32 architecture applied
  • Supports 8KHz polling rate / 14KHz scan rate per key
  • 0.16ms latency
  • Custom PCB standard specifications
  • 1.6mm Thickness
  • FR4Ā Material

Layout:

7U PCB Layout

6.25U PCB Layout

Compatible Switches:Ā

- Geon RaptorĀ HE
- Geon RAW HE
- GATERON KS-20 / KS-20T, etc.
- N-pole switch, 1600gs or less at bottom magnetic force
